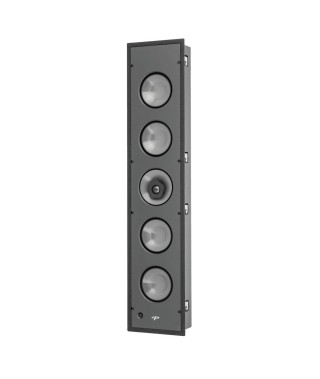

Paradigm CI Pro P5-LCR In-Wall Speaker

Features

• Two 6.5" Mineral-Filled polypropylene Woofers, 1" Mid-Bass voice coil

• 6.5" Coaxial Mineral-Filled polypropylene Midrange

• Two 6.5" Mineral-Filled polypropylene cones Passive radiators

• 1" X-PAL™ dome, ferro-fluid damped/cooled Tweeter Lens

• 15-200W Amplifier power range, 130W Max input power, 8 ohms compatible

• Reduced Edge Diffraction (RED™) Technology

• Premium-Grade components & Bezel-Free micro-perf magnetic grilles

The Custom Installer’s Smarter Choice

The CI Pro™ Series is Crafted in Canada, taking performance to the next level with patented technology, step-up components, hallmark Paradigm sound quality, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.

Integrated Back Box

Get floorstanding performance, without the floorstanding speaker! CI Pro LCR models have integrated back boxes to eliminate the guess work of wall cavities for the highest level of performance.

Screen Compensation Switch

The selectable switch on every LCR model will ensure true acoustic transparency when placed behind micro-perforated projection screens.

Innovative Technology makes the Difference

NEW X-PAL™ tweeter with exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens that protects the delicate pure-aluminum tweeter dome and acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output.

Our tweeter designs are cooled by the original ultra-stable Ferrofluid, made exclusively by Ferrotec. Ferrofluid is a colloidal suspension of magnetic nano particles in a liquid carrier with low volatility and high thermal stability.

Superior Mineral-Filled Co-Polymer Polypropylene Bass/Midrage Cones Oversized computer-optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass. Even movie dialog is incredibly clean and clear.

Paradigm’s patented† Active Ridge Technology (ART™) surrounds, made in-house and overmolded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. Crafted from audiophile-grade injection-molded thermoplastic elastomer, ART™ surrounds are more durable and reliable, for a lifetime of superior sound.

† US patents: D654,479S and 8,340,340B2.

Super-strong die-cast aluminum baskets feature integrated heat sinks for higher power handling, better bass, better dynamics, and less power compression.

1" High-Power Handling Voice Coil motor structure dramatically increases maximum output level and reduces power compression.

Reduced Edge Diffraction (RED™) Technology

RED™ Technology (patent pending) is a die-cast aluminum tweeter housing that significantly reduces negative effects of diffraction while improving critical midrange frequencies. The irregular edges and off-center placement break up standing waves typically found around the woofer cone and tweeter housing of traditional designs. Additionally, the aluminum structure dissipates unwanted heat which increases power handling and allows a lower crossover frequency, improving sound and reducing distortion.

Advanced Features for a Solid and Secure Installation

Die-cast aluminum chassis and clamps add strength and rigidity for better bass and midrange, along with a more durable installation.

Pocketed screw holes help to hold the drill steady, making installation a snap.

Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

Premium-grade components include high-power rated resistors, capacitors, and heavy gauge wire inductors.

NEW Bezel-Free Micro-Perf Grilles.

Specifications

DESIGN: 4 driver, dual passive radiators, 3 way, shallow enclosure in-wall design

FREQUENCY RESPONSE ON-AXIS: ±3 dB from 84 Hz - 22 kHz

HIGH FREQUENCY DRIVER:1” (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens

MIDRANGE FREQUENCY DRIVER: 6.5” (16.5cm) coaxial mineral-filled polypropylene driver, die-cast aluminum chassis

LOW FREQUENCY DRIVER: Two 6.5” (16.5cm) mineral-filled polypropylene drivers, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis, 1” (2.5cm) high-temp mid-bass voice coil

SENSITIVITY ROOM / ANECHOIC: 94 dB / 91 dB

IMPEDANCE: Compatible with 8 ohms

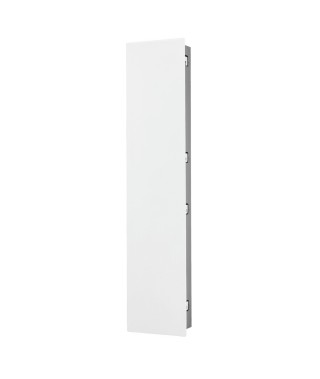

FINISHES: White, paintable grille

WEIGHT: 29.0 lbs. (13.2 kg)

LOW FREQUENCY EXTENSION: 65 Hz

CROSSOVER : 3rd order electro-acoustic at 2.8 kHz, 2nd order electro-acoustic @ 500 Hz

FREQUENCY RESPONSE 30° OFF-AXIS: 3 dB from 84 Hz - 19 kHz

SUITABLE AMPLIFIER POWER RANGE: 15-200 W

MAXIMUM INPUT POWER: 30 W

PASSIVE RADIATORS: Two 6.5” (16.5cm) mineral-filled polypropylene cones, overmolded Active Ridge Technology (ART™) surrounds

OVERALL DIMENSIONS: 43" (109.2cm) Height 9.5" (24.1cm) Width 4.125" (10.5cm) Depth

CUT-OUT DIMENSIONS: 42" (106.7cm) Height 8.5" (21.6cm) Width

MINIMUM MOUNTING DEPTH: 3.875" (9.8cm)

Specifications are subject to change without notice.
