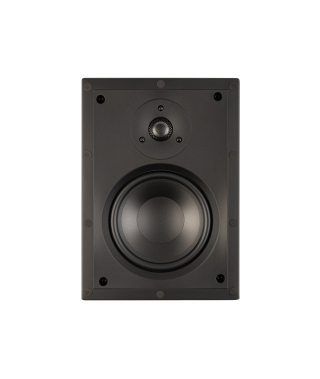

Paradigm CI Home H55-IW v2 In-Wall Speaker

Features

• 5.5" (139mm) Mineral-Filled polypropylene cone Mid/Bass driver

• 3/4" (19mm) Exclusive Perforated Phase-Aligning Tweeter lens

• Suits 15-80 watts Amplifier power range; 8 ohm compatible

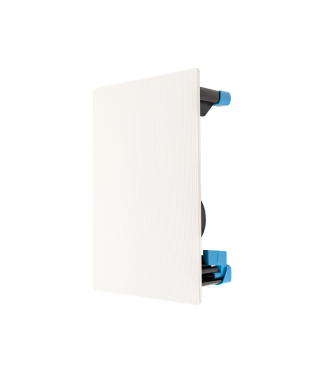

• Bezel-Free Micro-Perf white finish paintable magnetic grille

• Redesigned Easy-Access binding posts; 7cm Mounting depth

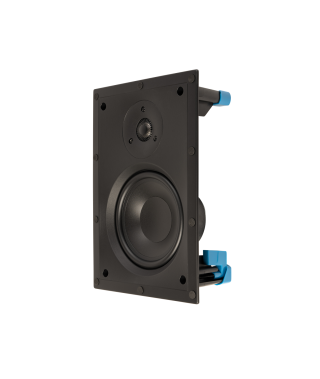

• Rigid ABS chassis & clamps system for faster & easier installation

CI Home Series v2

Your “Go-To” Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, trickle-down technologies, easy installation, and a bezel-free micro-perf grille with an incredibly discreet aesthetic.

Paradigm’s Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.

Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.

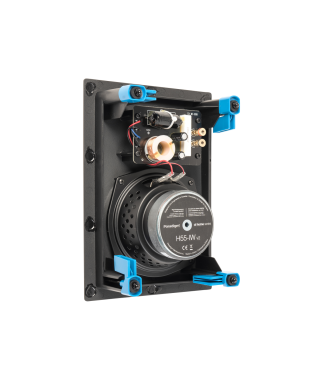

Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.

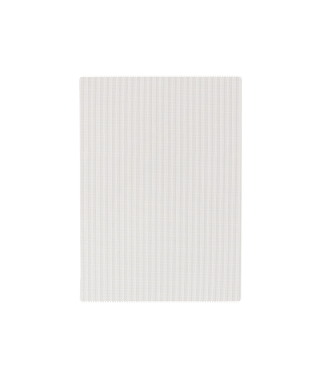

Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

Other Features

Pocketed screw holes help to hold the drill steady, making installation a snap. In addition, exclusive TORX-guided clamps protect against screw cam out and stripping.

Rigid ABS clamps simplify and reduce installation time. ABS sandwiches and strengthens the area around the mounting hole, removing unwanted resonance and vibrations.

Available pre-construction brackets and square grille accessories provide the utmost installation flexibility.

Specifications

DESIGN 2-driver, 2-way in-wall,ABS chassis & mounting clamps

CROSSOVER 2nd-order electro- acoustic at 2.5 kHz

FREQUENCY RESPONSE ON-AXIS ±2 dB from 75 Hz - 20 kHz

HIGH FREQUENCY DRIVER 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

MID/BASS FREQUENCY DRIVER 5.5” (13.9cm) Mineral-filled Polypropylene Cone

LOW FREQUENCY EXTENSION 60 Hz

SENSITIVITY ROOM / ANECHOIC 88 dB / 84 dB

FREQUENCY RESPONSE 30° OFF-AXIS ±2 dB from 75 Hz - 18 kHz

SUITABLE AMPLIFIER POWER RANGE 15-80 W

MAXIMUM INPUT POWER 50 W

IMPEDANCE Compatible with 8 ohms

WEIGHT 2.5 lbs (1.2 kg)

FINISHES White, paintable grille, black speaker

ACCESSORIES (INCLUDED) PB-6X9N

CUT-OUT DIMENSIONS 9-3/16” x 6-1/8” (23.3cm x 15.6cm)

MINIMUM MOUNTING DEPTH

(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) 2-3/4” (7cm)

DIMENSIONS HXWXD (INCLUDES GRILLE). 10-1/4” x 7-1/8” x 3-3/8” (25.9cm x 18.2cm x 8.7cm)
