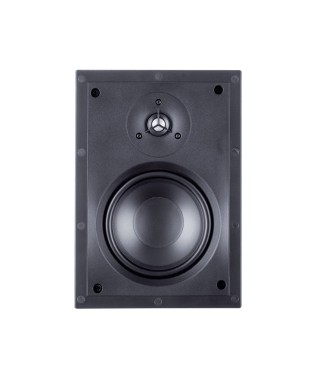

Paradigm CI Home H55-IW In-Wall Speaker

Features

• 5.5" (140mm) Mineral-Filled polypropylene cone Bass driver

• 3/4" (19mm) PTD™ dome Tweeter

• Suits 15-80 watts Amplifier power range

• Beze-Free Micro-Perf white finish paintable magnetic grille

• Redesigned Easy-Access binding posts, 7cm Mounting depth

• Rigid ABS chassis & clamps system for faster & easier installation

Your “Go-To” Custom Install Speaker

The CI Home™ series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.

High-Quality Components Make An Audible Difference

Superior PTD™ Pure-Titanium Tweeter Domes are Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.

Pocketed screw holes help to hold the drill steady, making installation a snap.

Easy-access Binding Posts feature a larger wire access hole and connect via banana plug, pin or bare wire.

Rigid ABS clamps cut down on installation time and simplifying installation.

Superior Mineral-Filled Polypropylene Bass/Midrange Cones with oversized computer-optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass. Even movie dialog is incredibly clean and clear.

NEW Bezel-Free Micro-Perf Grilles.

Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

No masking required—this makes the grilles faster and easier to paint, if painting is desired

A Behind-The-Ceiling Look At Our New ABS Clamps!

Without any unnecessary pressure or force, each turn of the screwdriver turns the clamp. We show the starting point, we show the screwdriver working to turn the clamp, and finally, we show the speaker locked into place inside the wall or ceiling. It doesn't get simpler or easier!

A Solid Installation

Our High-Strength ABS Chassis and Clamp System addresses the flexibility problem that plagues all walls and ceilings. ABS stiffness combats unwanted resonances and vibrations and equally important, the new clamp design makes the installer's job easier and faster!

Specifications

DESIGN:2-driver, 2-way in-wall, ABS chassis & mounting clamps

FREQUENCY RESPONSE ON-AXIS: ±2 dB from 75 Hz - 20 kHz

HIGH FREQUENCY DRIVER: 3/4" (1.9cm) PTD™ dome

MID/BASS FREQUENCY DRIVER: 5.5" (14cm) mineral-filled polypropylene cone

SENSITIVITY ROOM / ANECHOIC: 88 dB / 84 dB

IMPEDANCE: Compatible with 8 ohms

FINISHES: White, paintable grille

WEIGHT: 2.5 lbs. (1.2 kg)

LOW FREQUENCY EXTENSION: 60 Hz

CROSSOVER: 2nd-order electro-acoustic at 2.5 kHz

FREQUENCY RESPONSE 30° OFF-AXIS: ±2 dB from 75 Hz - 18 kHz

SUITABLE AMPLIFIER POWER RANGE: 15-80 W

MAXIMUM INPUT POWER: 50 W

OVERALL DIMENSIONS: 10.25" (26.0cm) Height 7.125" (18.1cm) Width 3.375" (8.6cm) Depth

CUT-OUT DIMENSIONS: 9.1875" (23.3cm) Height 6.125" (15.6cm) Width

MINIMUM MOUNTING DEPTH: 2.75" (7.0cm)

Specifications are subject to change without notice.
