GoldenEar Invisa MPX In Wall Speaker

A tremendous amount of work has gone into the acoustical engineering of the Invisa Series Ceiling Speakers / In Wall Speakers in order to deliver the highest sound quality possible in an architectural format. All models (except the 600) incorporate a High Velocity Folded Ribbon (HVFR™) high-frequency radiator similar to the unit used in all of GoldenEar’s award-winning Towers, Bookshelf and Satellite speakers. The Invisa MPX, with its advanced spaciousness and dispersion, is perfect for in-wall Main or Surround use. All ceiling speakers/in-wall models have complex multi-element crossovers to precisely blend the drivers for seamless, exquisitely natural sound quality.

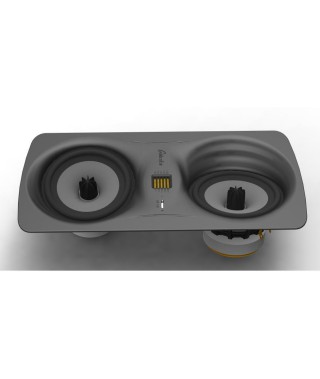

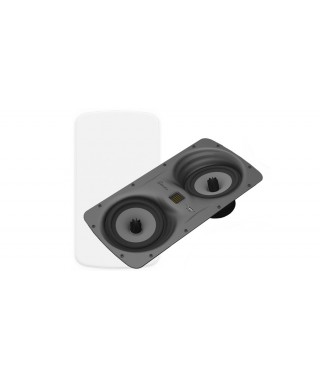

The Invisa MPX MultiPolar™ In-Wall/In-Ceiling Loudspeaker, with its dual 4.5" bass/midrange drivers, combines the advantages of a direct-radiating loudspeaker with enhanced spaciousness and dispersion. This makes them the perfect choice for the rear or side surround channels of a multi-channel installation, as well as for front main speakers or for distributed audio multi-room installations. It can be easily mounted in walls or ceilings and is very flexible in terms of orientation. Like the other ceiling Speakers / in wall speakers from the Invisa Series, it has a flat magnetically attached micro-perf grille that covers the flange for an attractive, nearly invisible look. It combines two precisely angled spiderleg cast-basket 4.5" bass/midrange drivers, a High-Velocity Folded Ribbon Tweeter (HVFR™) and a complex precision crossover network with a high-frequency equalization switch. Like the Invisa HTR 7000, it features GoldenEar’s unique Non-Periodic Diffraction Control and Wave-Launch technology for enhanced clarity and source-less sound radiation into the room.

4.5" and 7˝ High-Definition Bass/Midrange Drivers (Invisa MPX and Invisa HTR 7000)

GoldenEar Multi-Vaned Phase Plug (MVPP) Design

Rigid Free-Flow Cast-Basket Chassis

Proprietary Computer Optimized Cone Topology

High-Gauss Magnet Assembly

1˝ High-Temperature Kapton Former Voice Coil

Extremely Extended Resonant-Free Linear Frequency Response Characteristics

Specifications

Speaker Dimensions - 13-7/8˝ (35.4 cm) H x 7-1/4˝ (18.4 cm)W x 3-3/4˝ (9.5 cm) depth

Square Grille Dimensions - 14-1/2˝(36.83 cm) H x 7-3/4˝ (19.68 cm) W

Cutout - 12-3/4˝ (32.4 cm) H x 6-1/4˝ (19.9 cm) W

Weight - 2.7 kg

Frequency Response - 25 Hz - 35 kHz

Efficiency - 90 dB

Nominal Impedance - Compatible with 8 ohms

Driver Complement - Two - 4-1/2˝ (11.43) High-Definition Cast-Basket MVPP™ Mid/Bass Drivers , One - HVFR™ High-Velocity Folded Ribbon Tweeter

Recommended Amplification - 10 - 250 watt/channel
