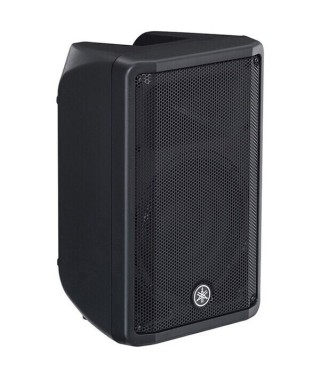

Yamaha CBR15 Passive PA Speaker

The Yamaha CBR15 is the biggest, and provides the lowest frequency in the CBR lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.

Reliable, with typical Yamaha Quality

Expect rich, clear sound and reliable performance from the Yamaha CBR15 passive loudspeaker.

With a respectable 500 watts of RMS power handling, and 96 dB SPL sensitivity, these loudspeakers boast impressive performance for their compact, portable nature.

You'll love the features on this well priced speaker - like the CBR15's HF-protection circuit, which prevents speaker damage from excessive input.

The clever design and form factor which lets you use the CBR15 as either a mains speaker or on its side as a floor monitor is also a big plus!

Portable, yet Powerful

With 500 watts RMS power handling and lightweight components, the Yamaha CBR15 is perfect for small to mid size venues, as well as for a portable rig that is easy to move. Whether you're in a band, a gigging DJ, or run a sound-for-hire rig, the CBR15 will serve you well in a variety of applications.

Awesome sound quality

The Yamaha CBR15 puts out full, punchy sound at any volume level thanks to two specific components:

An extremely sensitive LF driver puts out powerful bass even when you're not driving the speaker hard

HF-protection circuit prevents excessive input signals from damaging the tweeter for when you want to push your speaker to maximum volume

The Yamaha CBR15 will give you consistent, clear, high quality sound at any volume.

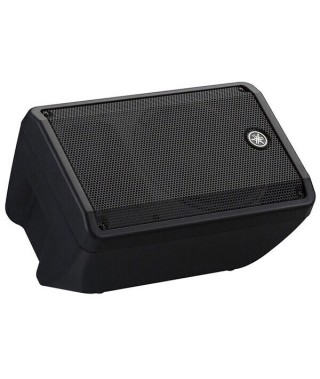

FOH speaker or Floor Monitor

This speaker has been designed to serve two roles: FOH duties, as well as stage monitor. Yamaha have incorporated a 50 degree wedge angle, allowing you to place the speaker on it's side and get the perfect stage monitor position.

The dual functionality of the Yamaha CBR15 makes it a super versatile speaker for many uses, and unbeatable value.

However you use it, expect stellar sound and performance you can trust with the Yamaha CBR15 passive loudspeaker.

Yamaha CBR Series

The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design and acoustic technologies that Yamaha has accrued over a long and storied history of making speakers.

Combining a meticulous materials selection process, thorough customisation of the audio components, and a fresh, innovative approach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highly portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.

Features

Ideal for small to mid size venues

Lightweight plastic cabinet

500 watts RMS power handling

1/4" Jack as well as speakON inputs for flexible connectivity

Great sound at any volume level

Use as a main speaker or as a floor monitor

Custom Designed Transducers

Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound

HF Protection Function

Highly Responsive LF Unit for Reliable Performance at Any Output Level

Rugged, Highly Portable Enclosure Design

Simple Connectivity

Versatility for a Variety of Applications

Specifications

Powered: No

LF Driver Size: 1 x 15"

HF Driver Size: 1.4"

Power Rating (Program): 500W

Peak Power Capacity: 1000W

Impedance: 8 ohms

Inputs: 1 x 1/4", 1 x speakON

Frequency Range: 46 Hz-20 khz (-10 dB)

Crossover Frequency: 2 kHz

Peak SPL: 126 dB

Horizontal Coverage Angle: 90 Degrees

Vertical Coverage Angle: 60 Degrees

Enclosure Material: Plastic

Mounting Options: Pole Mount with 1.37" socket, 3 x M8 Fly Points

Height: 70.1 cm

Width: 45.5 cm

Depth: 37 cm

Weight: 17.7 kg
