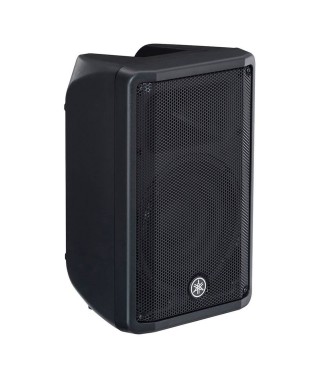

Yamaha DBR10 Powered PA Speaker

The  Yamaha DBR10 Powered 10" PA Speaker is the perfect powered speaker for any live situation! With 700 Watts of power, multiple inputs and  Yamaha DBR10 Powered 10" PA Speaker will cope with anything you throw at it!!

Delivering an accurate, controlled performance, the  Yamaha DBR10 Powered 10" PA Speaker can withstand a whopping 129dB SPL. Using the latest DSP, Yamaha applied their proprietary FIR-X tuning to optimize the sound and protection algorithms of the  Yamaha DBR10 Powered 10" PA Speaker, providing you with plenty of muscle, despite this active speaker's rather diminutive size.

Incredibly versatile, you can use the DBR10 as a great-sounding main speaker or as a high-performance floor monitor with a quick flick of the  Yamaha DBR10 Powered 10" PA Speaker's D-Contour switch. A switchable highpass filter also makes it easy for you to add a subwoofer to your rig. Macron Music has put together countless live systems over the past three decades, so give us a call. We'll be glad to help you out!

Features

FIR-X tuning delivers excellent sound quality with high resolution and a smooth frequency response

D-Contour optimizes the DBR10 for main speaker or floor monitor use

Onboard mixer lets you select either a direct output or a mixed output

Comprehensive inputs for mixer, musical instrument, or media players

Amplifier and power supply design provides powerful output from a compact speaker

DSP-controlled protection functionality promotes optimum reliability

Specifications

Powered Yes

Power Configuration Bi-amped

LF Driver Size 10"

HF Driver Size 1"

LF Driver Power Amp 500W

HF Driver Power Amp 200W

Total Power 700W

Frequency Range 55Hz-20kHz (-10 dB)

Crossover Frequency 2.1kHz

Maximum Peak SPL 129dB

Horizontal Coverage Angle 90 Degrees

Vertical Coverage Angle 60 Degrees

Enclosure Material Plastic

Mounting Options Pole, Floor Wedge

Inputs 2 x XLR/TRS Combo, 1 x stereo RCA

Outputs 1 x XLR

Height 19.4"

Width 12.1"

Depth 11.4"

Weight 23.2 lbs.

Manufacturer Part Number DBR10
