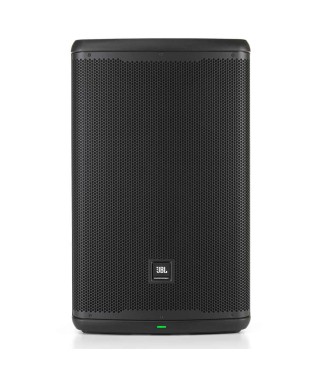

JBL EON715 Powered PA Speaker

15-inch Powered PA Speaker with Bluetooth

Launched in 1995, JBL’s best-selling EON family of PAs set the benchmark for how great a powered loudspeaker system can be.

The JBL EON715 15-inch loudspeaker is part of JBL’s new EON700 Series of powered PAs, which represents a major step forward in innovation and technology by delivering truly intelligible, clearly consistent coverage at any volume level.

The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.

With four models available, including the 10-inch EON710, the 12-inch EON712 and the 15-inch EON715 powered PA speakers and the 18-inch EON718S subwoofer, EON700 systems cover the needs of today’s working musicians and sound providers.

Features

Custom-designed 15-inch woofer

2414H compression driver

Re-designed high-frequency horn

Power: 1,300W peak / 650W RMS

Frequency response: 45 Hz–20 kHz (-10 dB); 55 Hz–20 kHz (-3 dB)

Max SPL: 128 dB

Dispersion: 90° H x 60° V

Audio I/Os: 2 XLR Combo, 1 XLR passthrough

Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ

Built-in 3-channel digital mixer

Backlit color LCD screen provides easy access to functions

Universal JBL Pro Connect app control

Bluetooth 5.0 streaming and control

Durable polypropylene cabinet and metal grille

Two ergonomic handles simplify transport

Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options

Stackable cabinets allow easy storage

Dimensions: 27.6 x 17.2 x 13.8 in (702 x 438 x 351 mm) (HxWxD)

Weight: 37.3 pounds (16.9 kg)

Shipping dimensions: 29.92 x 21.73 x 18.38 in (760 x 552 x 467 mm) (HxWxD)

Shipping weight: 49.6 pounds (22.5 kg)

Acoustics and Amplifier

JBL’s advanced waveguide and transducer technologies, coupled with highly efficient amplification, ensure uniform coverage across the entire listening area, even when you push the system to the limit.

The EON715’s woofer is redesigned for lower impedance and higher efficiency, an improved horn delivers a smooth off-axis beamwidth and JBL’s powerful 2414H compression driver features a premium neodymium magnet for balanced response in a lightweight footprint. The speaker is powered by 1,300 watts of ultra-efficient discrete Class D amplification, for clean, clear sound. It all adds up to superior coverage, consistency and intelligibility at any volume.

Advanced DSP and Control

The EON715’s advanced DSP package provides comprehensive control over EQ, limiters, delay, dbx Automatic Feedback Suppression, ducking and other speaker functions. Access settings on-speaker using an integrated backlit LCD screen, or from anywhere in the venue using the JBL Pro Connect App. Built-in Bluetooth 5.0 audio streaming and control take advantage of the newest protocol’s security features, low latency, broad range and improved audio fidelity.

System Versatility

EON715 loudspeakers can be used as main PA speakers or floor monitors. Top and rear suspension points enable flying speakers; rear suspension points serve as connections for fixed installations, using an optional universal yoke mount.

Indexed feet molded into enclosures enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport. (Companion EON718S subwoofers feature a threaded pole mount for full-range speakers and are easily stacked for cardioid configurations.)

Rugged and Reliable

All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds every time it’s turned on.

The EON715 is housed in an FEA-optimized composite enclosure, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. Computer-optimized ergonomic handles make moving boxes a breeze.

Like every JBL Professional product, the EON715 undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.

Specifications

System Type 15IN Powered Loudspeaker

Woofer Model 715G

Woofer Size 15"

Woofer Magnet Ferrite

Woofer Voice Coil 2"

Tweeter Model 2414H Compression Driver

Tweeter Size 1''

Tweeter Magnet Neodymium

Transducer Impedence LF 4ohm rated, HF 8ohm rated

Max SPL 128dB @1m/4Pi

Freq Range -10 45Hz - 20kHz

Freq Range -3 55Hz - 20kHz

Hor Dispersion 90°

Vert Dispersion 60°

Power Rating 1300W peak / 650 RMS

AC power input 100V-120V or 220V-240V

Cooling Passive

LED indicators 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs

Input Impedance 50k/100k un-balanced/balanced

Input Gain -∞to +36db

Crossover Frequency 1.9 kHz

I/O 2 XLR Combo Jacks / BT

1 XLR M Thru

Cabinet PP+10% Talc

Grille 16GA perforated steel with acoustically transparent black cloth backing

Suspension / Mounting 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes

Handles 2, cable channel on bottom

Net Weight 17kg (37.48 lbs.)

Gross Weight 21.5kg (47.40 lbs.)

Product Dims HxWxL 716x438x358mm (28.19x17.24x11.09 in.)

Shipping Dims HxWxL 738x543x458mm (29.06x21.38x18.03 in.)
