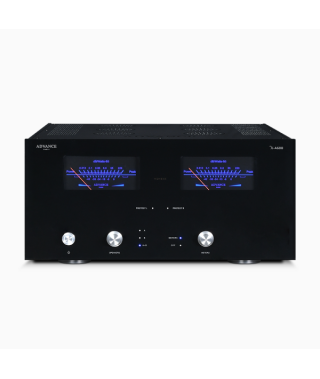

The X-A600 stereo power block is the new stereo power amplifier from Advance Paris.

The linear power supply is based on a 700VA toroidal transformer and dʼun set of 6 capacitors for a total of60000μF.Combined with "very high current" power transistors (NJW0281G -NJW0302G), we guarantee dynamic sound even under heavy loads.

The X-A600 delivers 200 W per channel in class AB at 8Ω. A "High BIAS" switch on the rear of the unit enables the X-A600 to deliver the first few Watts in sliding class A. Beyond this power, switching to class AB occurs automatically.

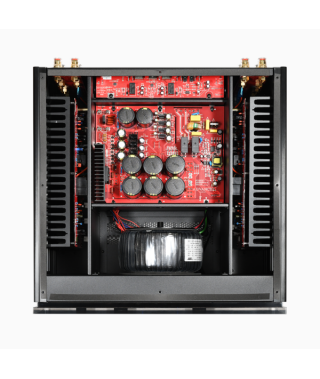

The X-A600 benefits from a highly rigid chassis thanks to its mechanical design. Each circuit is separated from the others by a compartmentalized construction ensuring effective shielding.The separate power block is an indispensable element of any advanced audio system. Combined with theX-P700 preamplifier, you can build a high-quality audiophile package capable of delicately powering all speakers while exerting absolute control over the woofers.

Specifications

Output power 8Ω

2 X 200 W RMS

Output power 4Ω

2 X 300 W RMS

Frequency response

10 Hz - 80 kHz

Distortion

Inf. TO 0.007%

Signal-to-noise ratio

113 dB

Crosstalk

108 dB

AC input compatibility

115V / 230V

Standby power consumption

Inf. TO 0.5 W

Max. power consumption

575 W

Transformer power

700 VA

Transformer type

Toroidal

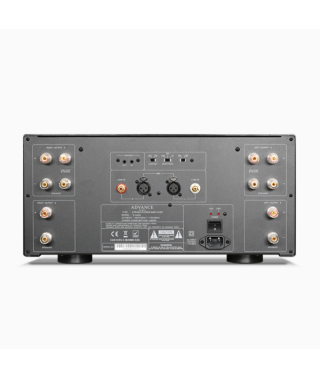

Inputs

LINE level on RCA and XLR sockets

Input selection (RCA / XLR)

Rear panel selector

Outputs

Bare cable, Banana plugs, Forks

High-Bias setting

Yes

Brightness adjustment VU-Meter

Yes (ON / OFF / Low / Medium / High)

Remote control

No

Trigger socket

2 (IN / OUT) 12V

Height

210 mm

Width

431 mm

Depth

464 mm

Net weight

25 kg

Gross weight

30 kg

VU-Meter

Yes
