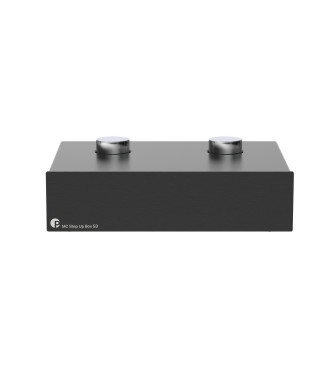

Pro-Ject MC Step Up Box S3 Step-up Transformer

Ask our expert.
Call (03) 85550735,Live Chat or

Ask a question about this product

Call or Email Us now for a better deal!

$674 Save 10%
$749
Tax included
*Seen it cheaper elsewhere? We do price match.
Quantity

The output level of Moving Coil (MC) cartridges is significantly lower than that of Moving Magnet (MM) cartridges, being approximately 10 times lower. Consequently, a special phono amplifier is required to utilize the signals effectively. This higher gain, however, can lead to increased noise levels and distortion. The MC Step Up Box S3 offers a solution to this issue.

Lively, dynamic & natural

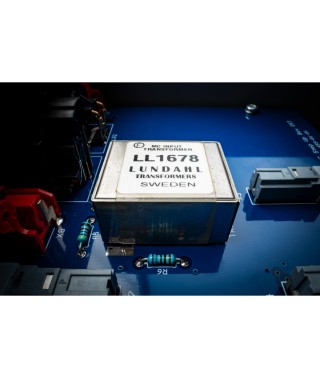

The MC Step Up Box S3 operates distinctly from a phono preamplifier, with its gain factor determined by the transformer's windings ratio. Functioning entirely passively, it requires no external power. Voltage increase is accomplished through a corresponding decrease in current. Since there is no amplification involved, the MC Step Up Box S3 boasts exceptional noise performance and minimal distortion. The resulting sound from using a Step-Up Transformer is more lively, dynamic, and natural.



Specifications

Frequency response 10Hz - 55kHz: +/- 1dB

Gain at 10-40 Ohm: 21dB at 1kHz

Gain at 40-150 Ohm: 24dB at 1kHz

Recommended load: 47 kOhm / 100pF

Input MC:1x pair RCA phono sockets

Output: 1x pair RCA phono sockets

Dimensions WxHxD: 206 x 65 x 153 (164 with sockets) mm

Weight: 940g
