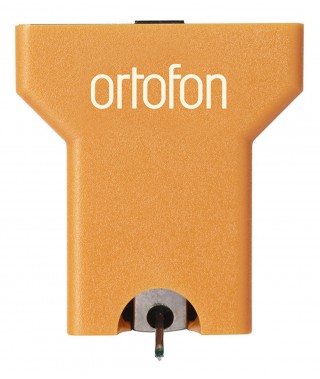

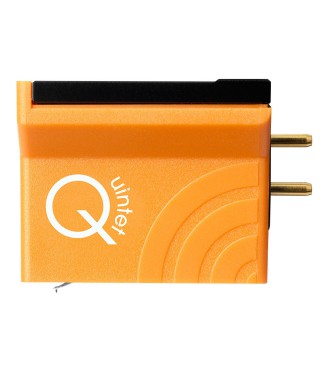

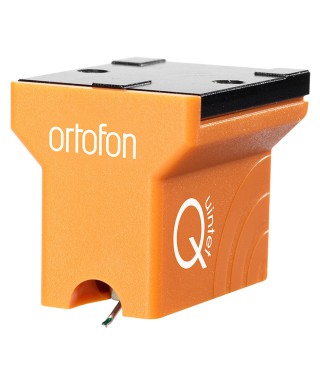

Ortofon Hi-Fi MC Quintet Bronze Moving Coil Cartridge

5705796271126

Call or Email Us now for a better deal!

$989 Save 10%
$1,099
2-7 Workings Days
*Seen it cheaper elsewhere? We do price match.
Quantity

Features
• Neodymium magnets are implemented to achieve an optimal output

• Light weight and durable cartridge body

• Nude Fine Line r/R 8/40 μm stylus

• Adds even more details and resolution but in a very evenhanded way that pays respect to all elements



Specifications
Output voltage at 1000 Hz, 5cm/sec.:  0.3 mV
Channel balance at 1 kHz:  < 1.2 dB
Channel separation at 1 kHz:  > 23 dB
Channel separation at 15 kHz:  > 15 dB
Frequency range at - 3dB:  20-25.000 Hz
Frequency response 20-20.000 Hz:  ± 1.5 dB
Tracking ability at 315Hz at recommended tracking force*    80 µm
Compliance, dynamic, lateral:  15 µm/mN
Stylus type:  Nude Fine Line
Stylus tip radius:  r/R 8/40 μm
Tracking force range:  2.1-2.5 g (21-25 mN)
Tracking force, recommended:  2.3 g (23 mN)
Tracking angle:  20°
Internal impedance, DC resistance:  5 Ohm
Recommended load impedance:  > 20 Ohm
Cartridge body material:  ABS/Aluminium
Coil wire material:  Pure 4-nines copper
Cartridge color:  Bronze
Cartridge weight:  9 g
