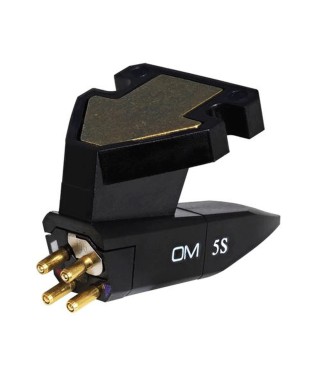

Ortofon Hi-Fi OM 5S Moving Magnet Cartridge

5705796013832
Ask our expert.
Call (03) 85550735,Live Chat or

Ask a question about this product

Call or Email Us now for a better deal!

$71 Save 10%
$79
Tax included
*Seen it cheaper elsewhere? We do price match.
Quantity

Features
• Ortofon moving magnet cartridge

• Spherical diamond Stylus tip

• Stylus is interchangeable with other OM styli



Specifications
Output voltage at 1000 Hz, 5cm/sec.:  4.5 mV
Channel balance at 1 kHz:  2 dB
Channel separation at 1 kHz:  20 dB
Channel separation at 15 kHz:  12 dB
Frequency range at - 3dB:  20-20.000 Hz
Frequency response:  20-22.000 Hz
Tracking ability at 315Hz at recommended tracking force*    60 µm
Compliance, dynamic, lateral:  20 µm/mN
Stylus type:  Spherical
Stylus tip radius:   r18 µm
Tracking force range:  1.5-2.0 g (15-20 mN)
Tracking force, recommended:  1.75 g (17.5 mN)
Tracking angle:  20°
Internal impedance, DC resistance:  750 Ohm
Internal inductance:  450 mH
Recommended load resistance:  47 kOhm
Recommended load capacitance:  200-500 pF
Cartridge colour, body/stylus:  Black/Black
Cartridge weight incl. extra weight:  5 g
Cartridge weight excl. extra weight:  2.5 g
Replacement stylus unit:  Stylus 5S
