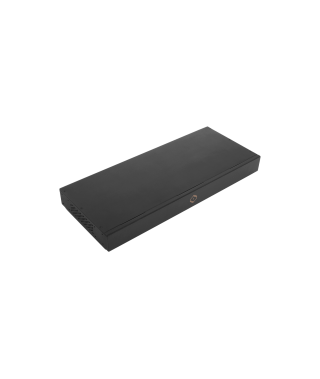

Silent Angel Bonn N8 Pro Network Switch

Bonn N8 Pro was created for music lovers who want to build a dedicated “HiFi Ecosystem” and achieve the best possible audio quality. Silent Angel’s rigorous approach preserves the integrity of the source and delivers a high-purity signal to connected components, for a performance unattainable with typical Network Switches. Purpose-engineered for High Resolution Streaming Networks, Bonn N8 Pro provides the ideal foundation for sonic excellence.

Two available N8 Pro models: One (N8 PRO-CLK) with an 10MHz external World Clock input, and one (N8 PRO) without.

Unique and Advanced Designs

Eight gold-plated enclosed Gigabit Ethernet Ports with spaced out ports to physically reduce possible signal interference.

Class-leading Radar-Grade internal switching power supply module, which is exclusive to noise-sensitive acoustic equipment.

Perfectly timed data transmission.

TCXO (Temperature Compensation Crystal Oscillator) greatly lowers network latency issues and jitter effects.

Advanced Options For Audiophiles

An additional DC power jack (12V) to bypass the internal switching power module and to connect an external linear power supply for upgrade.

A gold-plated ground connector (banana terminal) for a grounding box to further lower power noise.

LED light switch which enables users to turn off the port status indicator.

Class-leading clock receiving module for an external clock input.

Two available N8 Pro models: One with an 10MHz external Word Clock input, and one without.

Features

Designed for HD Music Streaming

The Bonn N8 Pro creates a HiFi audio zone to effectively separate your audio devices from household traffic. Eliminates noise, transmits the highly accurate timed data, reduces the impact from network broadcasting storm and latency caused by bandwidth-intensive activities from PC and other devices.

Exclusive Clock Module, TCXO: Silent Angel’s 0.1ppm TCXO (Temperature Compensation Crystal Oscillator) is 50 times more precise than a general Crystal Clock, lowering latency issues and jitter effects.

Jitter Effect Improvement: When transmitting high-frequency network packets, distortion is a common effect. Bonn N8 Pro is effectively able to lower this to 369ps whereas other general switches present at 705ps.

Optimized For Music Applications

Optimized for Roon infrastructure. e.g. Serve a network composed of Rhein Z1 as a Roon Core server, and Munich M1 as Roon Ready players.

Optimized for high-resolution streaming services such as Tidal, Qobuz, Spotify and more.

Optimized for playing music collections from NAS (Network Attached Storage), works well with multiple brands such as QNAP, Synology, WD NAS.

Further Upgrade

Power Source

Connect to the Forester F2 linear power supply (supplying dual 12 DC outputs) to further improve its power source.

Vibration Suppression

Minimize vibration and reduce noise by using S28 stainless steel stands.

Specifications

Available Model – N8 PRO-CLK (with an 10MHz external Word Clock input)

– N8 PRO (without external Word Clock input)

Color Black

Power Input IEC (AC) 100-240V, 50/60Hz

(DC) 12V/1A at max

Power Consumption 10 Watt at max

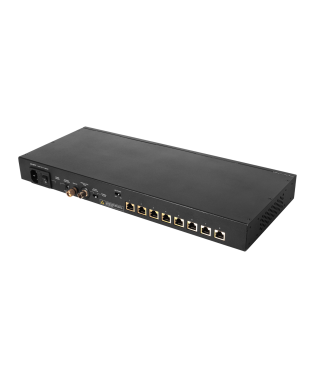

Ethernet Port Pure gold-plated 1GbE RJ45 port x 8

Interface Clock input switch x 1 (external/internal)

– BNC interface 10MHz external Word Clock

– Silent Angle specialized TCXO clock moduleLED indicator switch x 1

– Control the on/off status of LAN port LED

Grounding Port x 1

– Connect to a ground box to make the signal quality more purer and precise without interference

LED Indicator Power LED (Green) x 1 at the front panel

Port Status LED x 8 (Light on when linked; Flash when it’s active) at the rear panel)

Green: 1000Mbps; Amber: 100Mbps

Temperature Operating: 32 ~ 86 °F

Storage: -4 ~ 158 °F

Humidity Operating: 10% ~ 90% RH (non-condensing)

Storage: 5% ~ 95% RH (non-condensing)

Dimensions 17.37 (W) inch x 2.05 (H) inch x 6.89 (D) inch

Weight 5.74 lbs
