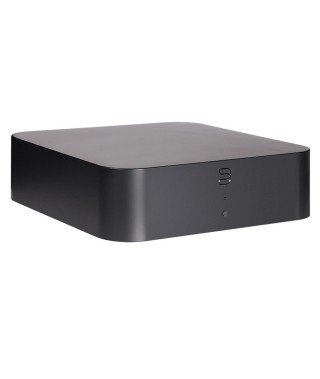

Bluesound HUB BluOS Network Audio Streamer

A VERSATILE NETWORK ACCESSORY

Complete your system with the HUB, a versatile network accessory that connects to a wide variety of audio sources, allowing them to play back on any Bluesound player.

Streaming audio is more flexible than ever with the HUB. Turn any wired audio device into a multi-room player by adding a HUB to transmit music to one or many Bluesound players around the home, wirelessly. This means you can now stream virtually any audio source, anywhere.

Features

Connect any wired audio source to the HUB to bring it into your Bluesound ecosystem

Stream your CD and vinyl collections anywhere in the house without being limited by wires or proximity

Low noise, wide-band moving magnet phono stage acts as a network turntable preamp for hi-res playback of vinyl

Use the HUB with a pair of Bluesound Pulse speakers to upgrade your TV sound

Enjoy five input options: HDMI eARC, Coaxial, Digital Optical, Stereo Analog and a moving magnet Phono stage to support your music devices

Play one analog and one digital stream simultaneously to different Bluesound or BluOS players

Easily choose any HUB input as the audio source for your Bluesound player with the BluOS app

Connect to the network with dual-band Wi-Fi or Gigabit ethernet

Universal USB-C plug and play power

Play Anything, Anywhere.

Easily add a Bluesound HUB to any audio source and stream it through your Bluesound multi-room music system. Enjoy your favourite music from audio sources like a turntable or CD player in any other connected room of your home.

Plenty of Connectivity Options

Take advantage of the HUB’s wealth of digital and analogue input options including HDMI eARC, Coax digital, TOSLINK optical, analogue RCA, and a MM Phono input. Each HUB can simultaneously stream one digital and one analogue source, and up to four HUBs can be supported on a single network.

Easy Setup. Easy Control.

The HUB is easily selectable as an input in the BluOS app. A few taps on the BluOS app allows you to control your entire multi-room system from your smartphone, tablet, or computer.

Minimal Wires. No Mess. No Hassle.

With a compact, minimalist design and a choice of high-speed dual-band Wi-Fi or wired Gigabit Ethernet connection options, the HUB provides unlimited placement flexibility, so you don’t have to move players around or deal with wires. By keeping its USB-C connected power supply external, the HUB stays compact, creating more opportunities for you to add HUBs around the house and preserve simplicity.

A Treat for Vinyl Lovers

Vinyl lovers will appreciate the HUB's built-in audiophile-grade MM phono stage preamp that brings the audio from your turntable to all your Bluesound players for whole-home turntable streaming. The HUB acts as a networked low noise, wide-bandwidth phono pre-amp, delivering spectacular audio quality so you can enjoy your vinyl collection in any or every room of your home.

Specifications

Audio & Operating System

Operating System BluOS

BluOS Controller Operating System iOS, Android, Windows, MacOS

Control System Integrations (via Software Update) Control4, Crestron, URC, RTI, ELAN, Lutron

Simultaneous Audio Streams 2 Per HUB, 1 x Analogue Audio Input, 1 x Digital Audio Input

Maximum Number Units 4 x HUB on Single Metwork (8 Simultaneous Streams)

Native Sampling Rates Up to 192 kHz

Bit Depth 16-24

Signal-to-Noise Ratio >100 dB (Line Input), >80 dB (Phono MM Input)

Distortion <0.03% 20 Hz - 20 kHz -1 dBFS Output

Frequency Response 20 Hz - 20 kHz ±0.3 dB, 50 kHz -3 dB

Connections

Power Supply Universal USB-C Power adapter (Input: 100 - 240 V AC / 0.3 A Output: 5 V / 2 A)

Ethernet/LAN Ethernet RJ45, Gigabit 1000 Mbps

Wi-Fi Built In Wi-Fi 5 (802.11ac), Dual-Band

Analogue Line Input 1 x Stereo RCA

Phono Input 1 x Stereo RCA (Moving Magnet)

Optical Input 1 x TOSLINK Digital Optical

Coaxial Input 1 x RCA (75 Ohms)

HDMI Input HDMI eARC with CEC

USB Input Type A (for BluOS Firmware Upgrade Only)

Audio Output Network

Features

Processor ARM® Cortex™ - A53, Quad-Core, 1.8GHz per Core

Status Indicator Front Panel LED

Function Button Front Panel Function Button

Power Consumption 0.5 W Network Standby

General

Finish Black; Matte Satin Paint

Version CB130

Included Accessories 5 V Power Adapter, 3 x International Plug Adapters, USB-C Power Cable, Ethernet Cable, Mounting Template, Safety/Warranty Guide, Quick Setup Guide

Product Weight 1.39 kg / 0.63 lb

Product Dimensions 143 x 153 x 45 mm / 5.6 x 6 x 1.8 in
