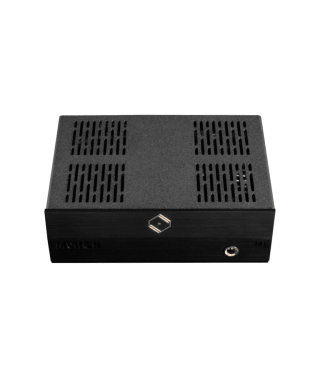

Silent Angel Munich M1 Music Player

Reshape Headphones

- With built-in Hi-Fi DAC to surprise you with lossless sounds.

- Musicality, flexibility, mobility, make the night sound better to yourself.

Audio Integration

- Enriched digital & analog outputs, and extendable storage.

- Cooperate with other audio gears to level up the source system.

Streaming Head

- Stop using PC or laptop to play HD music, time to go with an expert.

- Sole music enjoyment, let the active speakers serve you a home concert.

Hi-Fi System

- 1000Mbps Ethernet interface, real time-saver while functioning  NAS .

- Multiple HD streaming services in hand, audio dreams become Hi-Fi reality.

Versions

1 - Munich Player 4GB   MUSIC STREAMER / 4 GB RAM / USB AUDIO OUTPUT / AES/EBU I2S / COAXIAL DIGITAL AUDIO OUTPUT / RCA L+R ANALOG AUDIO OUTPUT / 6.3mm HEADPHONE OUTPUT / ROON END-POINT / VITOS ORBITER APP

2 - Munich Player 8GB   MUSIC STREAMER / 8 GB RAM / USB AUDIO OUTPUT / AES/EBU I2S / COAXIAL DIGITAL AUDIO OUTPUT / RCA L+R ANALOG AUDIO OUTPUT / 6.3mm HEADPHONE OUTPUT / ROON END-POINT / VITOS ORBITER APP

Specifications

- RCA Analog Output: 2Vrms THD+N : 0.00134 / 0.00164%

- Frequency response : 20Hz ~20KHz+- 0.5dB, SNR : 108dB

​- Digital Audio Path Processor: AES/EBU, I2S, Coaxial digital output supports up to PCM 384KHz and DSD 5.6M (DSD128)

​- USB Audio Up to PCM 768KHz and DSD 11.2MHz (DSD256)

​- Extension USB3.0*1,  USB2.0*2 for extra storage, and M-IO, M-LINK for peripheral access

- Specialized Circuit: Fan-less cooling main board design, specialized heat-sink lowering 20˚C working temperature, DC input 5V/2A at max

- Agile Dimens: 155*50.4*110mm to fit in every spatial requirements, weighed 1.63KG

- Hi-Fi DAC: With built-in Hi-Fi DAC, and Headphone Amp to directly activate audio fantasy.

​- Headphone Jack: 6.35mm headphone jack (33 Ohm), 1mW, THD+N : 0.0035%, MAX : 375mW THD+N : 0.002% (590 Ohm), Max : 27.5mW, THD+N : 0.0015%

​- Processing System: CPU (4 Core 1.5GHz ARM Cortex-A72) DRAM (Low-noise DDR4) 4/8GB ROM (High-speed 32GB Flash)
