IsoTek EVO3 Mosaic Genesis Power Conditioner

$13,953.64
$12,558.27 Save 10%
2-7 Workings Days

The EVO3 Mosaic Genesis is a hybridised version of IsoTek’s  Ultimate series. Combining the extremely low THD sine wave generation  engine from Genesis and a lighter version of Super Titan’s  Direct-Coupled© conditioning network, it delivers the perfect balance  between power and performance.

Colour
Quantity
Last items in stock

  • Delivery - FREE delivery Australia wide! Delivery - FREE delivery Australia wide!
  • Demo's - should you require a demo please contact us! Demo's - should you require a demo please contact us!
  • Pricing - some items are listed at RRP, call to discuss better prices! Pricing - some items are listed at RRP, call to discuss better prices!

The EVO3 Mosaic Genesis is a hybridised version of IsoTek’s  Ultimate series. Combining the extremely low THD sine wave generation  engine from Genesis and a lighter version of Super Titan’s  Direct-Coupled© conditioning network, it delivers the perfect balance  between power and performance.

Removes both Common Mode and Differential Mode mains noise.

Medium  power: (three outlets provide new sine wave generation) exceeds 85dB of  noise reduction, extending to zero Hz. High current: (two outlets)  offers extremely low- impedance and RFI reduction of 75dB (50 ohms standard).

99,000A progressive protection circuit.

Internal wiring; solid core silver plated PCOCC with FEP virtually an air dielectric.

150W of totally clean power for front-end components (three outlets) combined.

With  4600W (230V @ 20A) for large power amplifiers and mono blocks (two  outlets). Combining a single cell mains sine wave generator cell from  Genesis combined with a light version of the unique Direct-Coupled©  conditioning network of Mosaic Titan.

Available with UK, EU, US, Australian, Swiss and South African outlets.

Features
Three outlets featuring full sine wave generation with extremely low (typical 0.7%) THD

Two dedicated high current low impedance outlets (16Amps) suitable for power amplifiers

Suitable for all audio or AV systems

Compact and elegant half rack width design

Full system upgrade

Supplied with IsoTek’s award winning Premier power cable

UK, EU, US, Australian and Swiss specifications available

Design
IsoTek’s  EVO3 Mosaic Genesis is a state of the art hybrid power cleaning system,  combining the full mains sine wave generation system seen in our  Ultimate Series Genesis, combined with the high current, low impedance  Direct Coupled Design circuit from the ward winning Titan.

The  EVO3 Mosaic Genesis offers audio or audio visual systems a massive leap  forwards in terms of performance. Expect to have a significant expansion  of the sound stage, with incredible openness and transparency. The  Direct Coupled Design technology, allows for low impedance high current  delivery to two dedicated outlets. These are specifically designed for  power amplifiers, active loudspeakers or sub woofers.

EVO3 Mosaic Genesis is an easy to install full system upgrade.

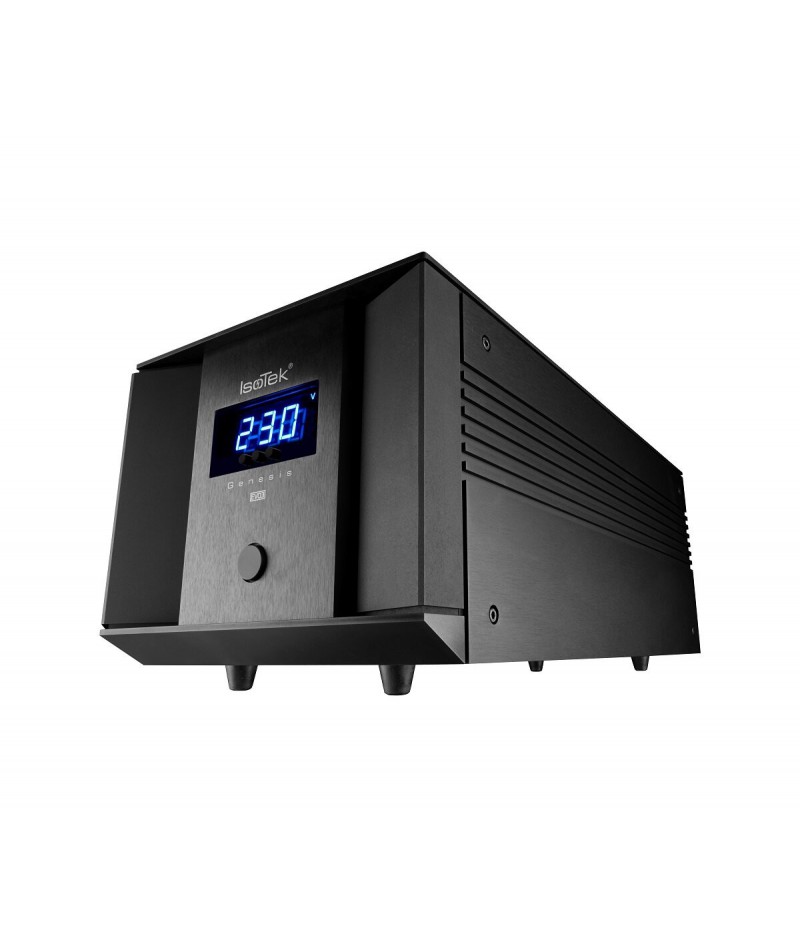

Housed  in a machined aluminium chassis with fully functional display showing  in coming voltage, THD and mains frequency and outgoing voltage, THD and  power consumption.

Specifications
Number of outlets 5
Outlets 1-3 (sine wave generation) 150W
Outlets 4-5 (high current) 3,680W
Mains inlet 16A IEC C20
Mains voltage 100 to 240V depending upon model
Mains frequency 50 to 60Hz depending upon model
Dimensions 225 x 225 x 470mm (W x H x D)
Weight (boxed) 20Kg
