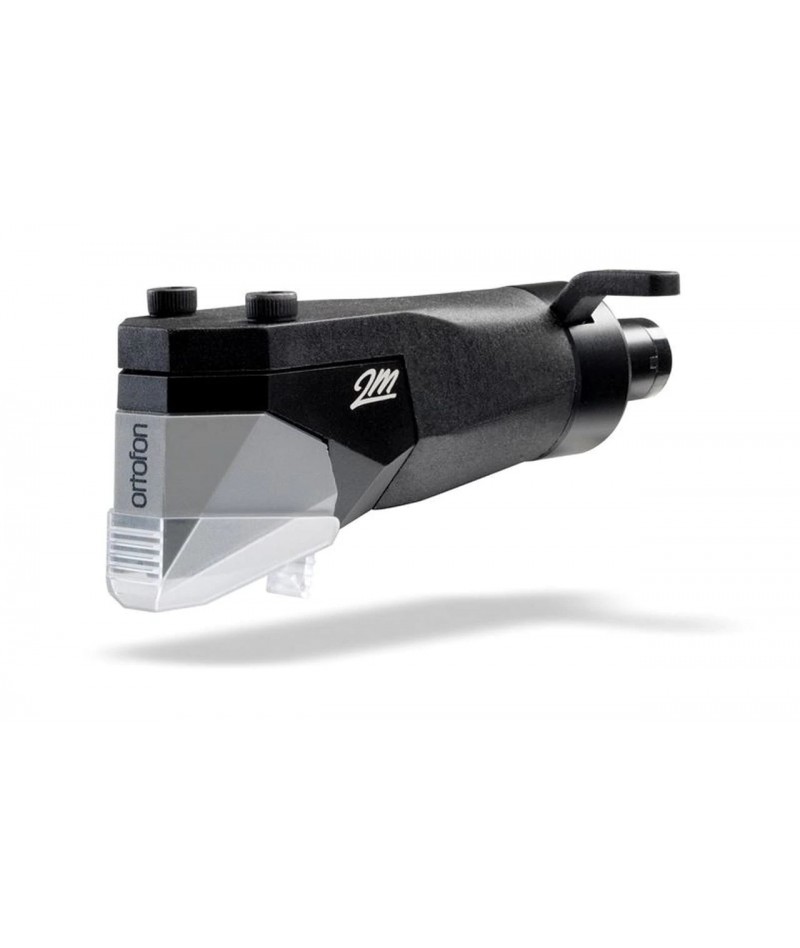

Ortofon Hi-Fi 2M 78 PNP Moving Magnet Cartridge

5705796080186

Call or Email Us now for a better deal!

$242 Save 10%
$269
2-7 Workings Days
*Seen it cheaper elsewhere? We do price match.
Quantity

Features
• Optimised sound reproduction and high level of sonic accuracy

• Universal mount fitting a wide range of tonearms

• Exclusive plug-and-play MkII solution

• Stylus is interchangeable with 2M Mono styli

• Spherical diamond Stylus is perfect for playback of 78 rpm shellac records



Specifications
Output voltage at 1000 Hz, 5cm/sec.:  4 mV
Channel balance at 1 kHz:  -
Channel separation at 1 kHz:  -
Channel separation at 15 kHz:  -
Frequency range at - 3dB:  20-20.000 Hz
Frequency response:  20-20.000 Hz +3/-1 dB
Tracking ability at 315Hz at recommended tracking force*    70 µm
Compliance, dynamic, lateral:  18 µm/mN
Stylus type:  Spherical
Stylus tip radius:   R 65 µm
Tracking force range:  1.6-2.0 g (16-20 mN)
Tracking force, recommended:  1.8 g (18 mN)
Tracking angle:  20°
Internal impedance, DC resistance:  0.7 kOhm
Internal inductance:  350 mH
Recommended load resistance:  47 kOhm
Recommended load capacitance:  150-300 pF
Cartridge colour, body/stylus:  Black/Grey
2M / 2M Verso cartridge weight without screws:  7.2 g
2M PnP cartridge weight:  20 g
2M PnP MkII cartridge with integrated headshell length:  52 mm
Replacement stylus unit:  2m 78
Interchangeable with:  2M Mono
