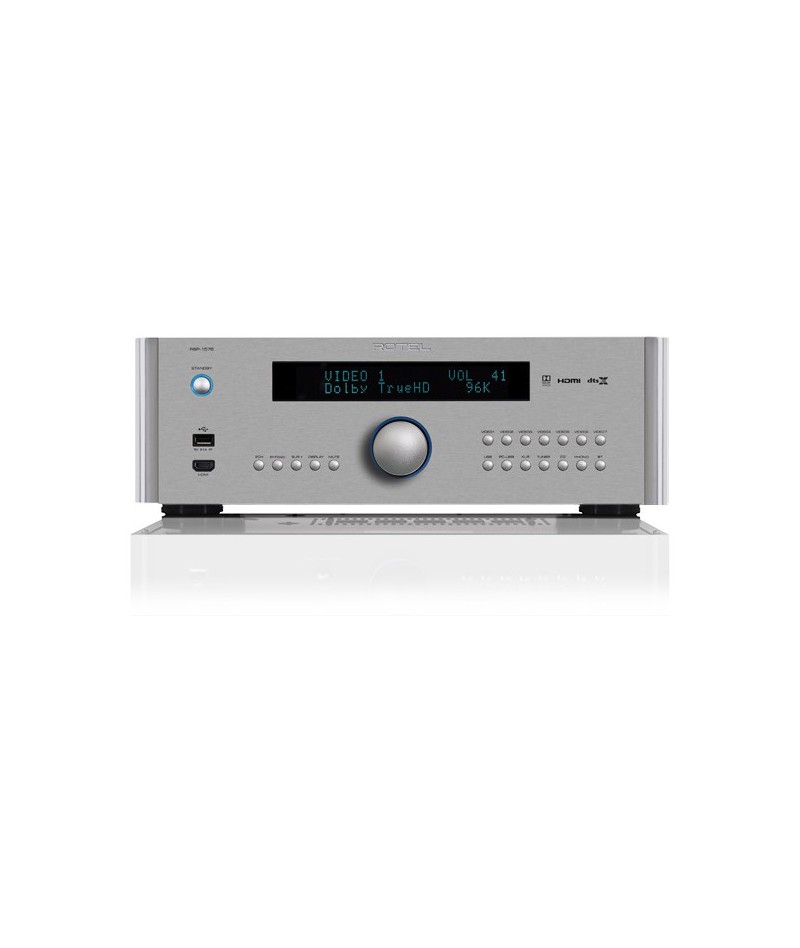

Rotel RSP-1576 Surround Sound Processor

672563258114

Call or Email Us now for a better deal!

$3,959 Save 10%
$4,399
2-7 Workings Days
*Seen it cheaper elsewhere? We do price match.
Colour
Quantity

Leveraging over 55 years of design experience the Rotel engineers designed a multi-channel preamplifier capable of decoding all popular audio formats. The 2 DSPs and array of 6 Wolfson 24-bit/192kHz audiophile grade DACs support configuration options from 5.1 to a complete Dolby Atmos 7.1.4 home theater. There are 12 channels of RCA audio outputs for a fully customized installation.

The architecture of the RSP-1576 includes individual audio and video processing circuits with careful attention to signal routing ensuring the highest in class performance. The sonic circuits were tuned in the UK by the acoustic engineering team to further ensure the RSP-1576 accurately reproduces audio from the dynamics of blockbuster movies to the subtle nuances buried deep with an orchestral concerto.

The array of source inputs include coaxial (3), optical (3), PC-USB (24-bit/192kHz), iPod, aptX Bluetooth, RCA Analog and Moving Magnet phono input for vinyl enthusiasts. The RSP-1576 comes replete with a full array of custom installation options include RS232 and IP control, IR remote receiver input, IR remote repeater outputs, 10 band parametric EQ for room equalization and software updates available via the front USB or over the internet. The setup menu is available on both the HDMI output and on the integrated VFD display providing easy access to all configuration options.

Supported by a full lineup of Rotel Class AB amplifiers ranging from 120 Watts to 350 Watts in 2 Chanel and 5 Channel options, the RSP-1576 is sure provide countless hours of entertainment.



Specifications
DIMENSIONS (W × H × D):

431 × 144 × 348mm (17" × 5.7" × 13.7")

FRONT PANEL HEIGHT:

3U / 132.6mm (5.25")

POWER REQUIREMENTS:

120V, 60Hz

POWER CONSUMPTION:

60W

STANDBY POWER CONSUMPTION:

<0.5W

NET WEIGHT:

8.8kg (19lbs.)

BTU RATING:

114 BTU/h

TOTAL HARMONIC DISTORTION (THD)

Analog Bypass: 0.0006%

Digital Inputs: 0.003%

FREQUENCY RESPONSE

Analog Bypass: 10Hz - 100kHz ±1dB

Digital Inputs: 20Hz - 20kHz ±0.5dB

Phono Input: 20Hz - 20kHz ±0.5dB

S/N RATIO (IHF "A" Weighted)

Analog Bypass: 112dB

Digital Inputs: 112dB

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)

<0.005%

INPUT SENSITIVITY

Line Level Inputs (RCA): 270mV

Line Level Inputs (XLR): 500mV

Phono Input (MM): 3.5mV

INPUT IMPEDANCE

Line Level Inputs (RCA): 100kΩ

Line Level Inputs (XLR): 100kΩ

Phono Input (MM): 47kΩ

PREOUT LEVEL Unbalanced (RCA):

1V

VIDEO INPUT RESOLUTIONS

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1080p/24Hz, 3D, 4K, UHD, 4K 60Hz, 4K HDR10

VIDEO OUTPUT RESOLUTIONS

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1080p/24Hz, 3D, 4K, UHD, 4K 60Hz, 4K HDR10

COLOR SPACE SUPPORT

sRGB, YCbCr 4:2:2, YCbCr 4:4:4

DEEP COLOR SUPPORT

24-bit, 30-bit, 36-bit

DIGITAL AUDIO LPCM (up to 192kHz, 24-bit), Dolby Surround, Dolby TrueHD,

Dolby ATMOS, DTS-HD Master Audio, DTS:X

HDMI INPUTS/OUTPUTS

7 inputs supporting HDCP 2.2, HDMI 2.0a

2 outputs supporting HDCP 2.2, HDMI 2.0a

Audio Return Channel

CHANNEL SEPARATION

>75dB
